Embed on your website

This walks you through putting the hosted Radioso website widget on a public site and proving it’s locked to the site you meant. Holding the embed token isn’t enough on its own — by default the launch also has to come from an origin you’ve approved, which is what most of this page is about.

The happy path

Four steps get you there:

1. enable anonymous chat and website embed for the workspace
2. allow exactly one site origin
3. install the launcher script on that site
4. confirm the approved site can chat and an unapproved site cannot

What the embed flow does

The embed script launches a widget, asks the frontend for an embed session, and the frontend forwards that bootstrap request to the backend. The backend then checks three things:

1. the workspace embed token exists
2. website embed is enabled for that workspace
3. the origin setting admits the browser origin

The origin setting is a single list. An explicit list admits only matching origins. A * entry admits any browser origin that has the install code. An empty list admits no origins. If the checks pass, Radioso issues a short-lived embed session token tied to the workspace, anonymous session, and source origin.

What you’re trying to prove

Getting the launcher to appear is the easy half. Before you call this done, confirm all three:

• the right website can launch the assistant
• the wrong website can’t impersonate it
• the assistant answers from your workspace content once it’s launched

Local embed harness

Start the local harness from the repo root:

node scripts/serve-embed-test-site.mjs

Then open:

• Approved origin: http://127.0.0.1:4321
• Blocked origin: http://localhost:4321

Those two URLs differ only by host, on purpose. That single difference is enough to prove that origin matching is exact.

Opening either URL loads a config form, not a working widget yet: it asks for your Radioso app origin (http://localhost:3000 by default) and an embed token, and it refuses to mount anything until you paste one in. That token doesn’t exist until you create it in the dashboard — see the first step under One concrete test flow below.

Example launcher snippet

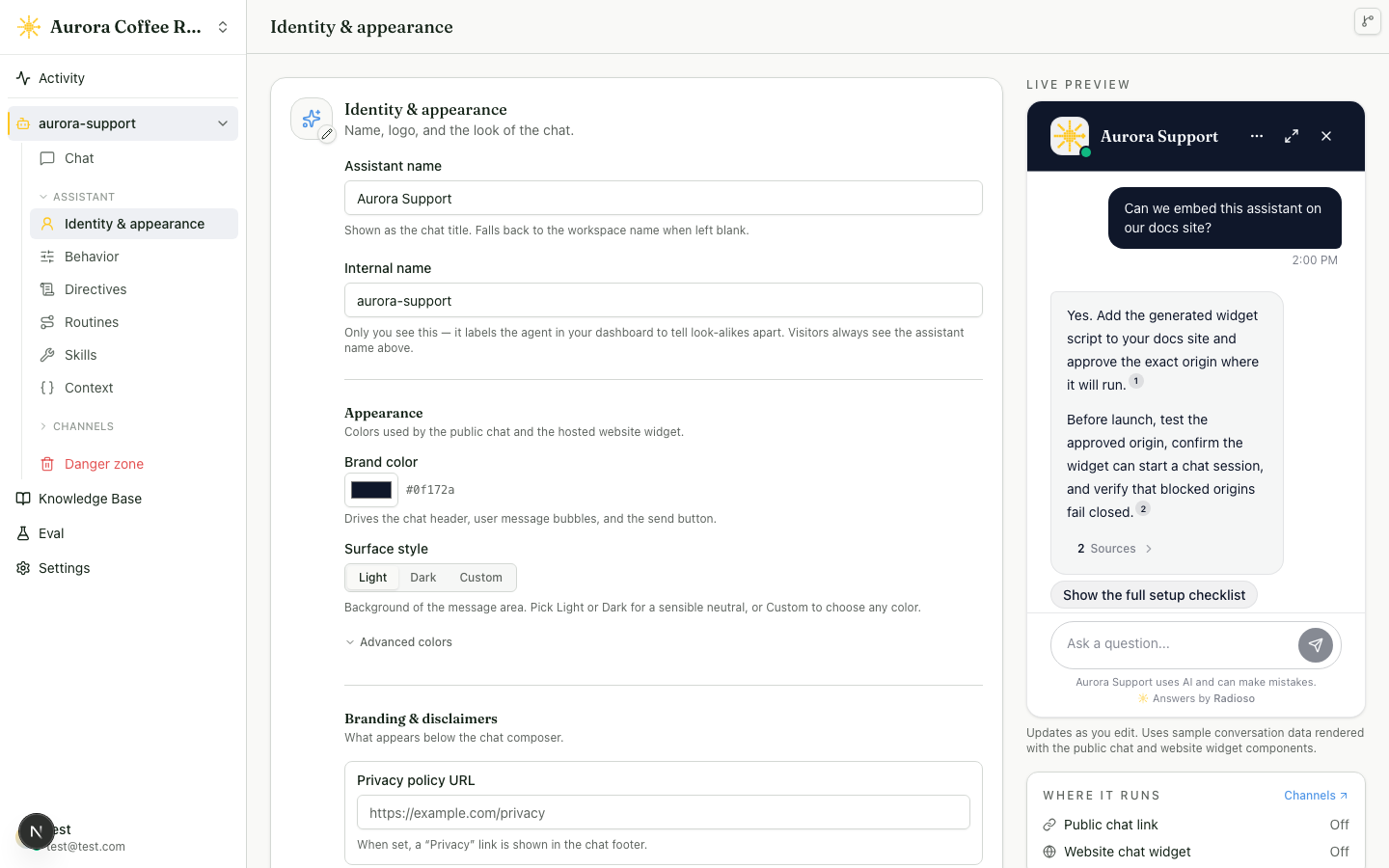

In production, the Enterprise launcher is a normal script include with the embed token. Branding, visitor-facing wording, theme colors, and expert overrides are stored in Radioso settings — the Web chat page under the agent’s Channels section previews them live as you edit. Look holds the logo, brand color, and surface style; Wording holds the ten visitor-facing strings, with Add a translation for a per-language pack the widget serves to visitors in that language; Footer holds the privacy policy URL.

<!-- data-radioso-token below is a placeholder. Copy the real value from the
     agent's Channels → Website widget settings in the dashboard. -->
<script
  async
  src="https://your-frontend.example.com/radioso-embed.js"
  data-radioso-token="wksp_embed_REPLACE_WITH_YOUR_TOKEN"
></script>

The detail that trips people up: the script origin and the allowed website origin are different concerns. The script can be hosted in one place while only approved customer-facing origins are allowed to bootstrap sessions.

Analytics tracking

The embed sends sanitized activity events to the host page with window.postMessage. Radioso does not load PostHog, Google Analytics, Segment, or any other analytics SDK on the site owner’s behalf.

If your site already runs PostHog, add a listener that forwards Radioso events into your existing project:

<script>
  const radiosoScript = document.querySelector('script[data-radioso-token]')
  const radiosoAppOrigin = radiosoScript ? new URL(radiosoScript.src).origin : null

  window.addEventListener('message', (event) => {
    if (event.data?.type !== 'radioso:analytics') return
    if (radiosoAppOrigin && event.origin !== radiosoAppOrigin) return
    if (!window.posthog) return

    window.posthog.capture(event.data.event, {
      ...event.data.properties,
      radiosoSubjectType: event.data.subjectType,
      radiosoSubjectId: event.data.subjectId,
      source: 'radioso_embed',
    })
  })
</script>

The origin check is a safety guard for production pages with multiple embedded frames. The example derives it from the installed Radioso script, so you don’t have to hard-code the widget host.

The embed-config response can be served from a CDN. It’s the same for every visitor on a given site, regardless of browser language, so a CDN caches it per admitted origin. The origin setting still applies: a site that is not admitted is rejected and never cached. The launcher fetches this config once on page load; caching it keeps that request off your origin. After an operator changes embed settings, invalidate the cached config so the change appears immediately; otherwise it appears once the cached copy expires.

Embed analytics events:

Each message has this shape:

type RadiosoAnalyticsMessage = {
  type: 'radioso:analytics'
  event: 'website_embed.loaded' | 'chat.started' | 'chat.completed' | 'chat.failed' | 'chat.citation_clicked' | 'chat.link_clicked'
  timestamp: string
  source: 'embed'
  subjectType?: 'embed_session' | 'conversation'
  subjectId?: string
  properties?: Record<string, string | number | boolean | null>
}

Radioso does not include visitor message text, assistant answer text, retrieved document text, prompt text, cookies, session tokens, or connector secrets in these events.

For chat events, properties.embedSessionId groups activity from the same embedded session. chat.completed also includes answer counters such as citationCount and suggestionCount when available.

For chat.citation_clicked and chat.link_clicked, Radioso sends link metadata such as linkType, citationIndex, documentId, chunkId, destinationOrigin, and destinationPath when available. Query strings and URL fragments are not included in analytics events.

Recommended launch sequence

One concrete test flow

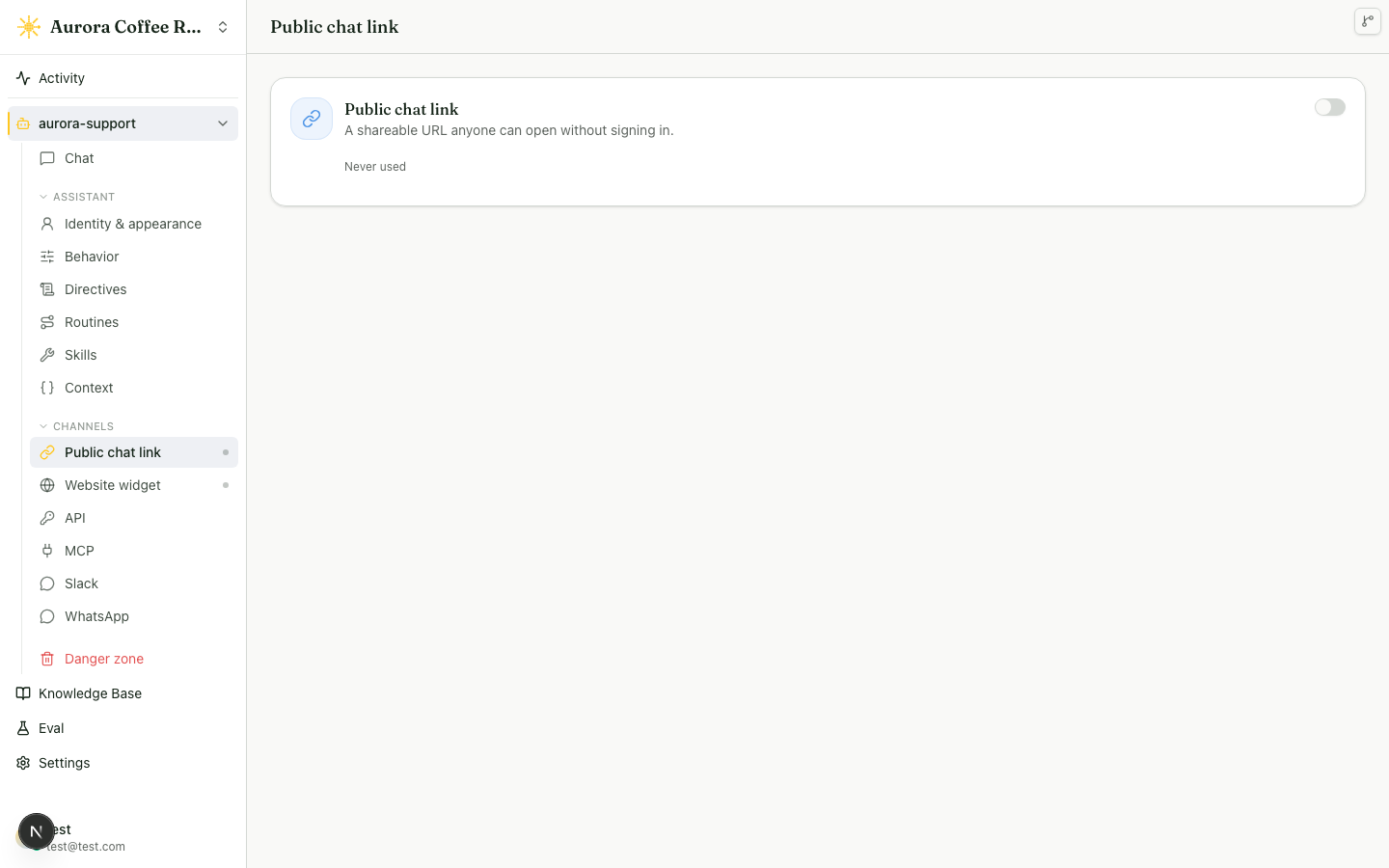

1. In the dashboard, open the agent’s Channels section, enable the Website widget, and copy its embed token.
2. Add http://127.0.0.1:4321 to the allowed-origin list.
3. Enable anonymous chat and website embed.
4. Load http://127.0.0.1:4321, paste the copied token into the harness form’s Embed token field, and click Reload with widget.
5. Confirm the widget opens and a chat session is established.
6. Ask a question that your workspace documents should answer.
7. Load http://localhost:4321.
8. Confirm that bootstrap is rejected there.

What to verify on an approved origin

• The launcher appears only on approved origins
• The embedded chat can establish a session through the frontend bootstrap route
• The backend accepts the forwarded request only when the origin is allowlisted
• The widget uses the assistant logo plus the server-side theme, operator locale copy, and expert override settings. Built-in translations are bundled in the launcher script and picked from the visitor’s browser language. The standalone public chat link and full-page embed do not load the launcher, so they select the same built-in translation from the request’s Accept-Language header (or an explicit ?locale= parameter) instead
• Responses stay aligned with your workspace content and settings
• Returning users can resume the same anonymous session instead of starting over each time

What to verify on a blocked origin

• The launcher may load the script, but session bootstrap should fail
• The backend should reject the launch with an origin error rather than silently falling back

Common failure modes

• Allowlist mismatches are usually exact-origin problems. Include the full origin, including port.
• If the widget loads but can’t chat, website embed may be enabled while anonymous chat is still missing or disabled.
• If local embed works from one host but not another, that’s usually the system behaving correctly.

What success looks like

• The approved-origin test page can open chat and receive a valid response
• The blocked-origin test page cannot bootstrap an embedded session
• The widget behavior matches the server-side embed branding and customization settings
• The rollout gives you confidence that the embed is both usable and origin-scoped

Production adaptation

When you move beyond the local harness:

• point the script at your deployed frontend origin
• keep the allowed-origin list narrow and explicit
• verify the customer-facing site sends the expected browser Origin header
• test both a working production origin and one intentionally unapproved origin before rollout

The production sign-off question is: can our approved site launch the assistant, and can a copy of the snippet on an unapproved site fail closed?

What to do next

• If the embed launches but answers are weak, go to Document upload and Agents and skills.
• If the widget should be live soon, review Deployment.
